Introduction
To give you the smoothest possible start to your individual interior project, we have compiled the dimensions of all available Peugeot Boxer models.
Disclaimer: VANME is not responsible for the correctness and completeness of the content presented. All information without guarantee. After handing over the vehicle, we will take professional laser measurements of your interior to allow for any deviations in the planning.
Peugeot Boxer dimensions Year of construction 2006 to date
| L1/H1 | L1/H2 | L2/H1 | L2/H2 | L4/H2 | L4/H3 | L5/H2 | L5/H3 | ||
| A | Wheelbase (mm) | 3000 | 3000 | 3450 | 3450 | 4035 | 4035 | 4035 | 4035 |
| B | Vehicle length (mm) | 4963 | 4963 | 5413 | 5413 | 5998 | 5998 | 6363 | 6363 |
| C | Load compartment length (mm) | 2670 | 2670 | 3120 | 3120 | 3705 | 3705 | 4070 | 4070 |
| D | Load compartment width (mm) | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 |
| E | Load compartment height (mm) | 1662 | 1932 | 1662 | 1932 | 1932 | 2168 | 1932 | 2168 |
| F | Vehicle height (mm) | 2254 | 2522 | 2254 | 2522 | 2522 | 2760 | 2522 | 2760 |
| G | Between wheel arches (mm) | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 |
| H | Length overhang (mm) | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 | 1380 | 1380 |
| Load volume (m3) | 8 | 9,5 | 10 | 11,5 | 13 | 15 | 15 | 17 | |
| Roof load (kg) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |

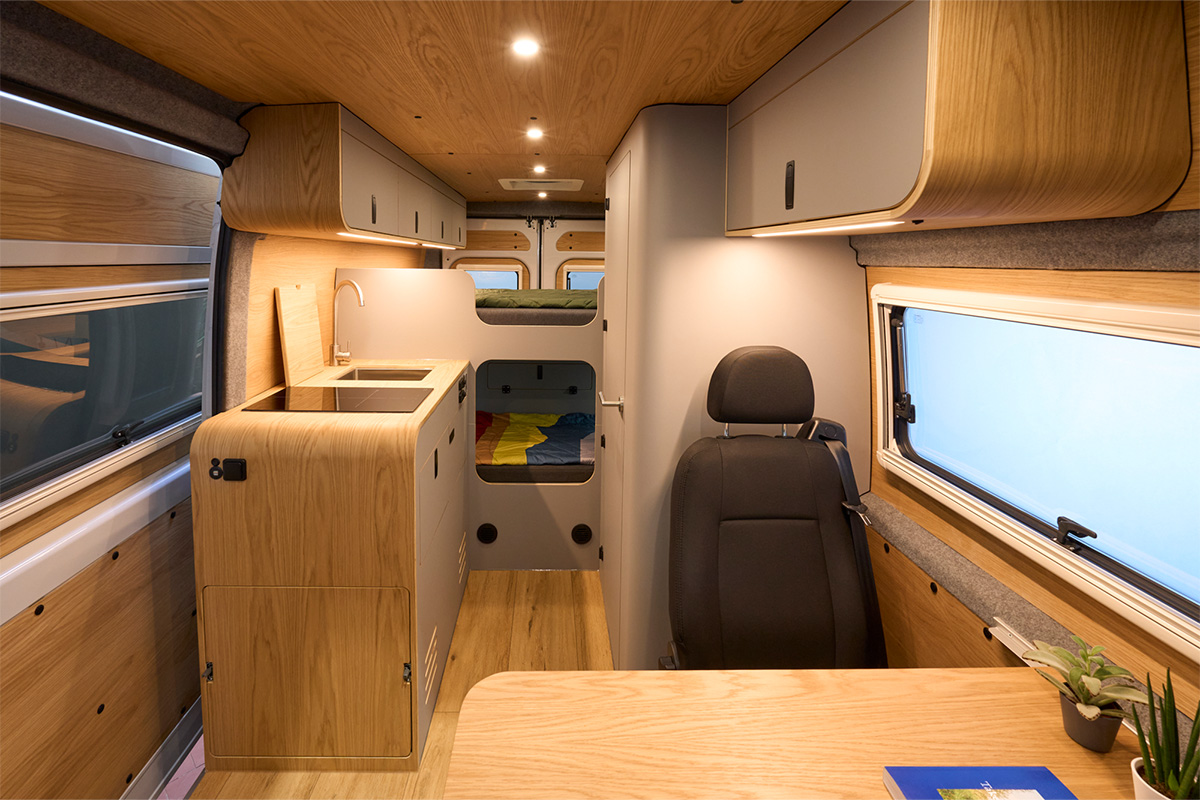

The Peugeot Boxer dimensions in individual interior fittings
The Boxer is the absolute space miracle on the vehicle market and therefore offers maximum space for individual interior fittings.
The interior of the Boxer is practically square. The floor space is rectangular and is barely cut into by the vehicle contour from floor to ceiling. This is achieved by very straight outer walls and a vehicle roof without a slope. The vehicle has a very short front, making the ratio of overall length to load compartment length the largest on the market.
The Boxer is available in four different lengths and three different heights. Height 2 is the ideal basis for an individual interior conversion, as it offers standing height and still allows a roof with a sufficient roof load for roof racks or pop-up roofs.
For a pop-up roof, the Boxer must be at least length 2.
